Brand Name : LIYI
Certification : CE ISO
Place of Origin : China
MOQ : 1
Price : $3,099.00 - $5,680.00/Set
Payment Terms : T/T
Delivery Time : 10-15 work days
Packaging Details : customize wooden case
Voltage : 220V/380V
Applicable Industries : Manufacturing Plant, Industrial furnace, lab
Temperature range : RT~1100°C
Max temperature : 1200.C
Power : 220V or 380V
Heating time : RT~1100°C About 50 min
Key Selling Points : High Productivity
Power (kW) : 3
Dimension(L*W*H) : 62*67*48CM
Price Of Industrial Electric Heat Treatment Muffle Furnace / Lab Furnace
Model | LY-612 | LY-625 | LY-630 | LY-640 | LY-X |
Chamber size (W*H*D)cm | 12*8*20 | 25*16*40 | 30*20*50 | 40*40*60 | Which can be customized |
Temperature Range | RT~1800℃(Standard one is to 1200℃) If you need higher temperature, please let us know, it can be customized | ||||
Heating Up Time | RT~1200℃ About 50 min | ||||
Temperature Accuracy | ±1℃ | ||||
Heat Element | Top quality resistance wire, based on temperature range, we also offer other heating element like silicon carbide rod, SiC heater, MoSi2 heater etc. | ||||
Thermal Couple | Type K, Type S, Type B etc. | ||||
Temperature Control | • PID automatic control and auto-tune function. • 31 or 51 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • Larger digital control panel (48 x 96 mm) for easy operation. | ||||

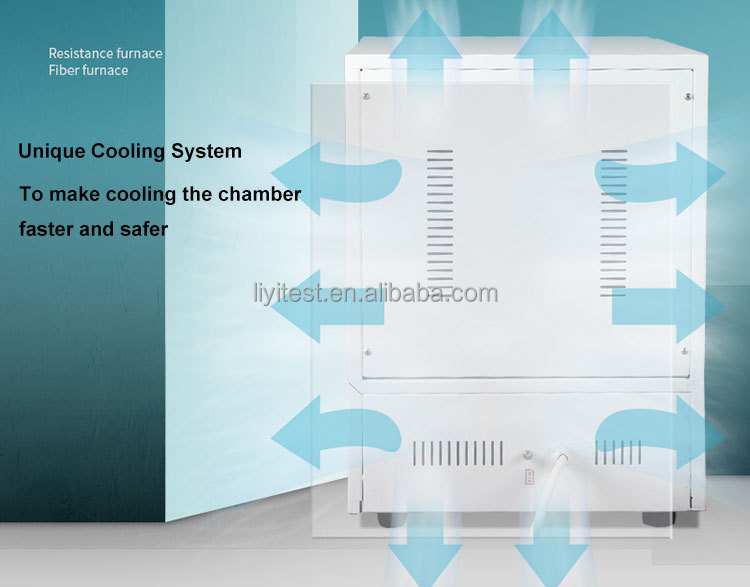

Furnace Structure | •high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50℃. |
![]() |
3KW Heat Treatment Muffle Furnace , Industrial Electric Lab Furnace Images |
